Gandom is a software rasterizer that mimics algorithms which are behind graphics APIs and even what are implemented physically on GPU dies. In this project, I have implemented the processes used by graphics APIs and GPUs to render and synthesize an image for display, implemented entirely in code running on a CPU. For the performance issues I leveraged SIMD instructions (AVX2) to improve its performance. I implemented key algorithms of the graphics pipeline, such as triangle clipping, back-face culling, and scanline rasterization.

Key Features

  • Geometric Processing: Model/View/Projection transformations, perspective correct interpolation.
  • Rasterization Core: Efficient triangle setup, scanline or barycentric-based pixel traversal.
  • Per-Fragment Operations: Depth buffering (Z-buffering) for correct occlusion.
  • Texture Mapping: Affine or perspective-correct texture sampling.
  • Model Loading: Ability to parse and render standard 3D model file formats.

Here are some images from Gandom:

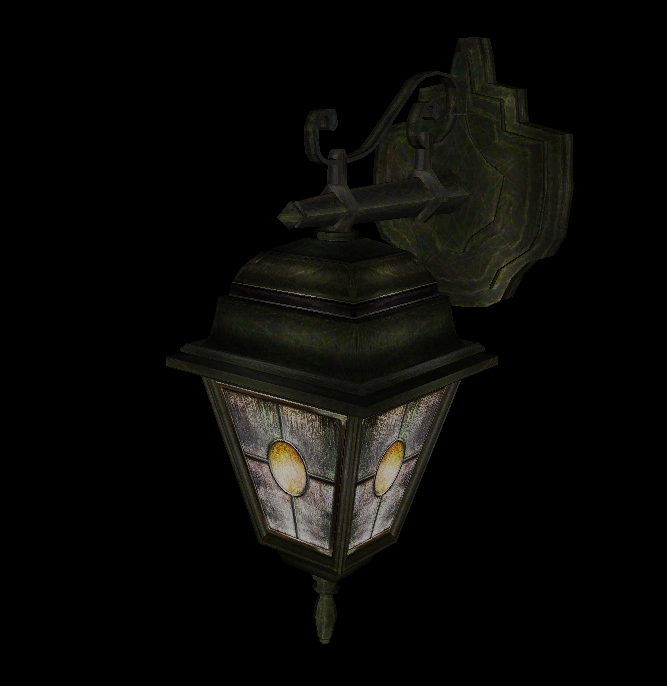

Center of the map
Center of the map

Future Works

  • Vertex and Fragment Shaders: Support for a simple shader model, allowing for programmable lighting and coloring.
  • Texture Filtering: various filtering options like nearest-neighbor, bilinear, etc.
  • Other Per-Fragment Operations: configurable blending modes.
